Descriptions

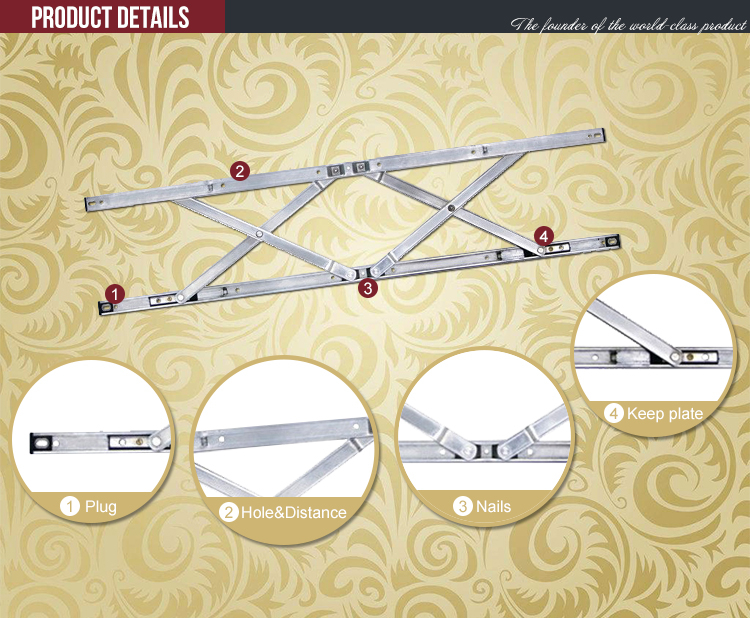

Stainless steel double cross parallel friction stay
| Application | Window(Side Hung) |
| Product Model | YK-HL0224 |
| Material | Stainless Steel 316,304,201,430 |
| Specification | 8'' - 36''(custonmized) |
| Type of Slot | Circular,Square |
| Type of Slider | Brass,PVC-Steel |
| Thickness | 2.0mm,2.5mm,3.0mm |
| Stack Height | 13mm-18mm |
| Basic Width | 22mm |
| Opening Angle | 35/65/90° |
| Capacity | 18KG-130KG |
| Warranty | 100,000 Times/10 Years |
| Certificate | SGS,ISO,TUV,CQC |
| MOQ | 10000 PCS |
| Packing Detail | 2 PCS/Polybag,100PCS/Carton |
| Service | OEM,ODM |
| Payment Term | T/T,L/C |
| Delivery Detail | 20-25 Days After Deposit |
A-Description:
♦Regular and heavy duty types .
♦18mm and 22mm groove available.
♦Suitable for top-hung and casement windows .
♦Stainless steel :316#,304#,202#,201# grade .
C-Technical performance:
•Top-Hung Windows Stays(Non-handed). Suitable for Top-Hung outward opening casement PVC-Stainless steel wndows or aluminum windows . Regular channel width 22mm is for light duty window and channel 22mm is for heavy duty window.
•Composite Stee/PVC slider for strength, durability and smooth operation .
•Manufactured form grade stainless steel for maximum strength and longevit.High resistance to corrosion .
B-Technical data:
| INCHES | LENGTH | SLIDE HOLES | CHANNEL HOLES | BAR THICKNESS | ANGLE | SUPPORT |
| 12'' | 300 | 29 | 150 | ≥2.5 | 90°±3° | 25KG |
| 14'' | 350 | 30 | 203 | ≥2.5 | 90°±3° | 35KG |
| 16'' | 400 | 30 | 208 | ≥2.5 | 90°±3° | 45KG |
| 18'' | 450 | 31 | 210 | ≥3 | 90°±3° | 50KG |
| 20'' | 500 | 28 | 240 | ≥3 | 90°±3° | 60KG |
| 22'' | 550 | 30 | 304 | ≥3 | 90°±3° | 65KG |
| 24'' | 600 | 35 | 354 | ≥3 | 90°±3° | 70KG |
| 28'' | 700 | 35 | 345 | ≥3 | 90°±3° | 85KG |
Friction Stay,Window&Door Hinge,Window Handle,Door Handle,Window Lock,Door Lock.
Our Partners in China for Your Reference.
We have clean workshop and world advanced level of equipment, such as design department, mold, zinc/aluminum/plasticdiecasting , machining, polishing, spray coating, assembly and hinge workshops. The material is good quality .
Packaging & Shipping:
We have professional packing team to make sure your items' safety.
25 Pairs/Carton & 50 Pairs/Carton are the normal package,or up to you.
General 80 Cartons/Pallet,if we provide the LCL service.
